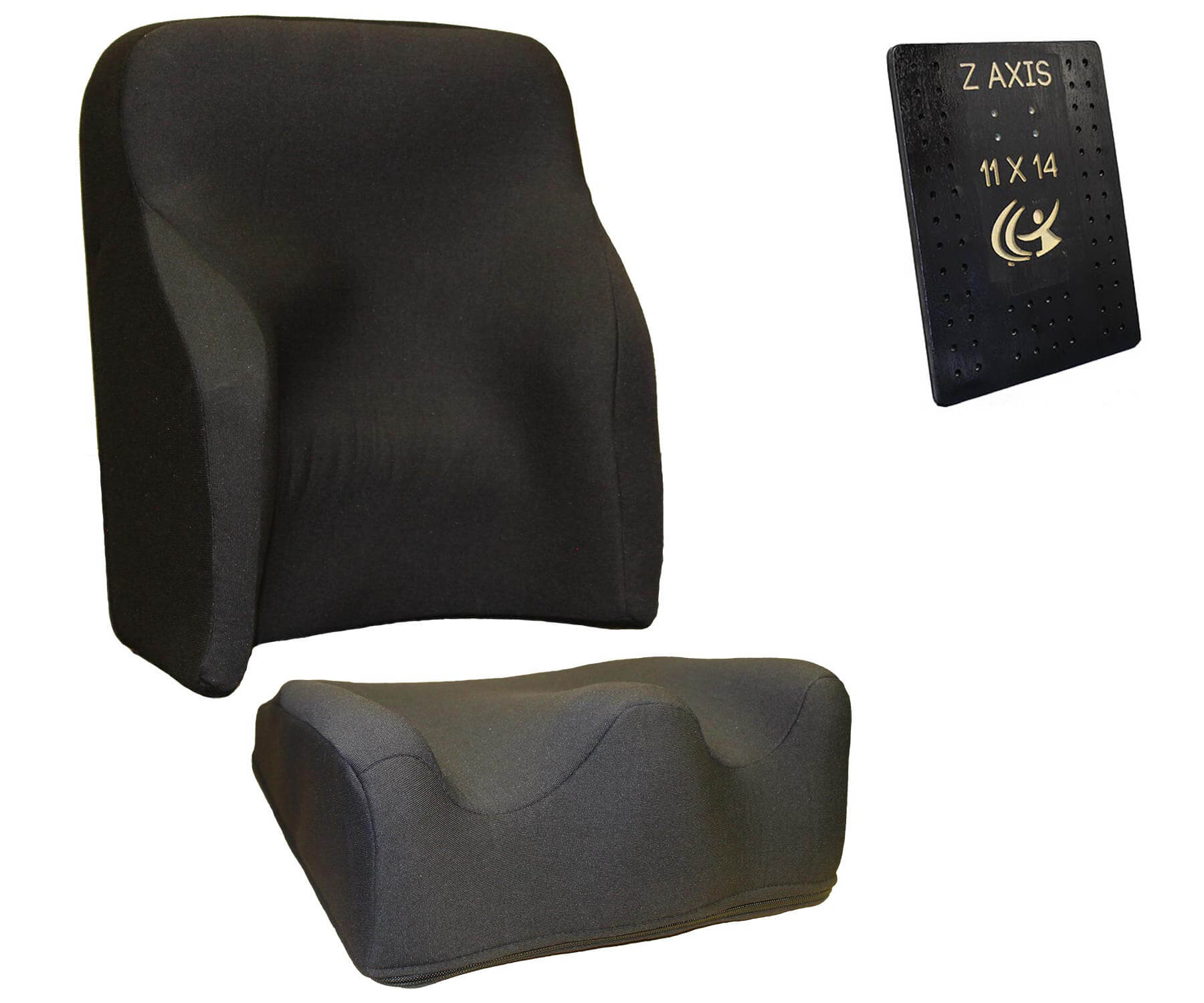

Custom ZSS Direct Carve Seats and Backs

ZSS


Z-Axis 3-D Scanners

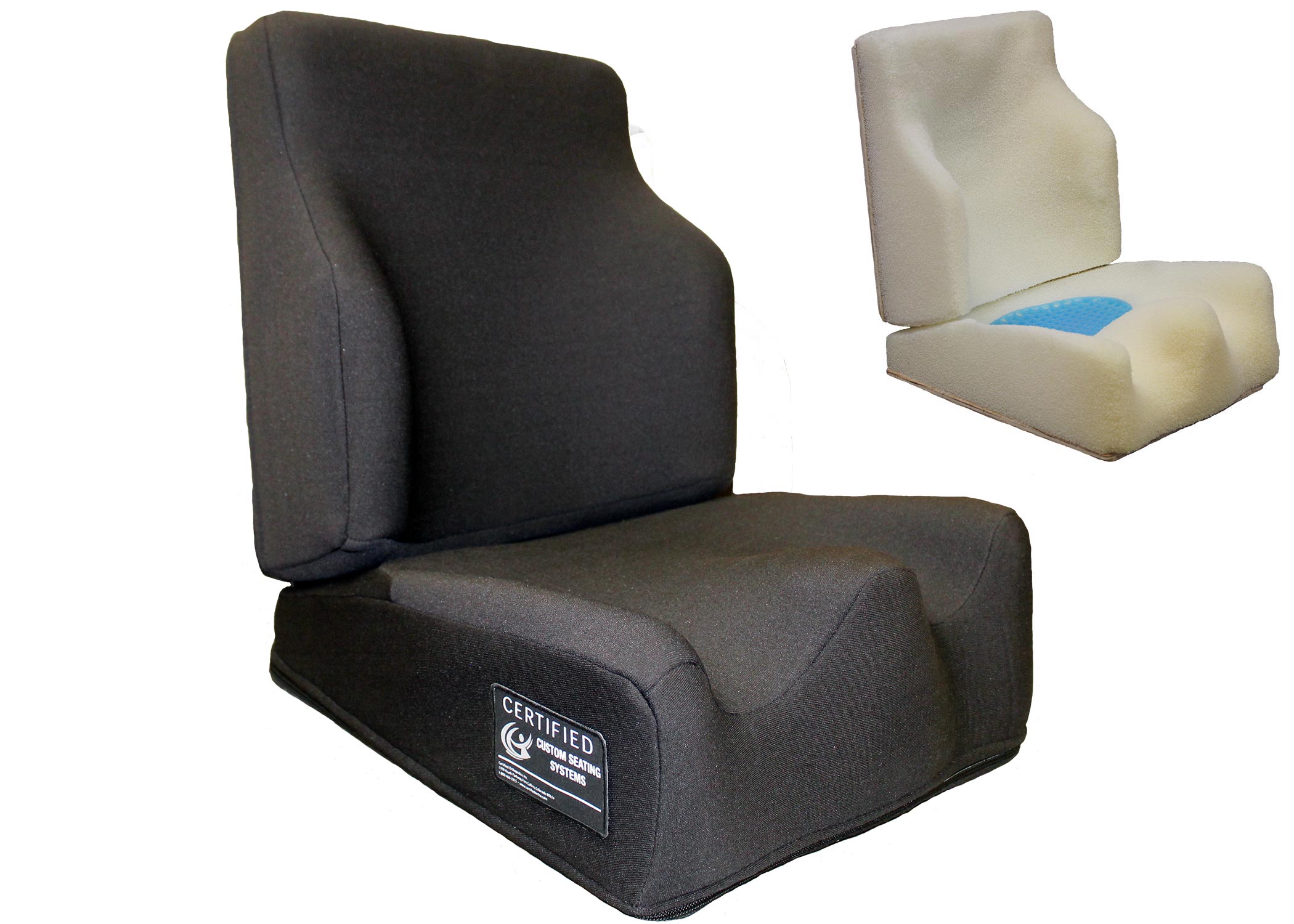

Combined Package

The ZSS offers a classic direct carved custom seating system to address pressure management and to manage unique contours, asymmetries, and abnormalities.

Certified Adaptive has updated this proven classic custom seating system style by offering several base layer foam choices to drastically reduce weight, increase air flow, and select foam densities to properly manage each patient's unique seating needs.

Our manufacturing capabilities provide the ability to capture deep contours and laterals offering increased stability and control. The ZSS offers lateral reinforcement options as well as a variety of fabric cover options.

Z-Axis 3-D Scanners ZSS Custom Seats and Backs can be purchased separately or combined into one system. ZSS also offers removable covers with material choices, choice of attachment hardware, and a trial fit option for complex situations.

Our Certified Adaptive App allows for a Turn Key ordering process. Simply scan the mold, complete the order form, capture any necessary client/mald pictures, then choase to make, draw, and annotate pictures before submitting simultaneously in the App. Accamplish the Shape Capture process using Certified's Z-Axis Scanners. Any desired modifications can be selected and achieved through Z-Axis Technology.

ZSS Custom Seats and Backs can be backed with Plywood or ABS Plastic with T-Nut configuration of your choice, or with solid seat back or seat pans. T-Nut configurations can be selected or drawn to fit a custom configuration ZSS Custom Seats and Backs have Flush Mount Options with a variety of mounting kits.

ZSS Custom Seats and Backs are PDAC Approved.

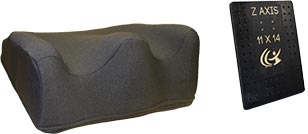

Z-Axis ZSS Custom Cushions: E2609

- 1/2 Plywood
- ABS Plastic
- Velcro Tabs

Material Options

Thermoplastic Shel! lined with choice of following material options:

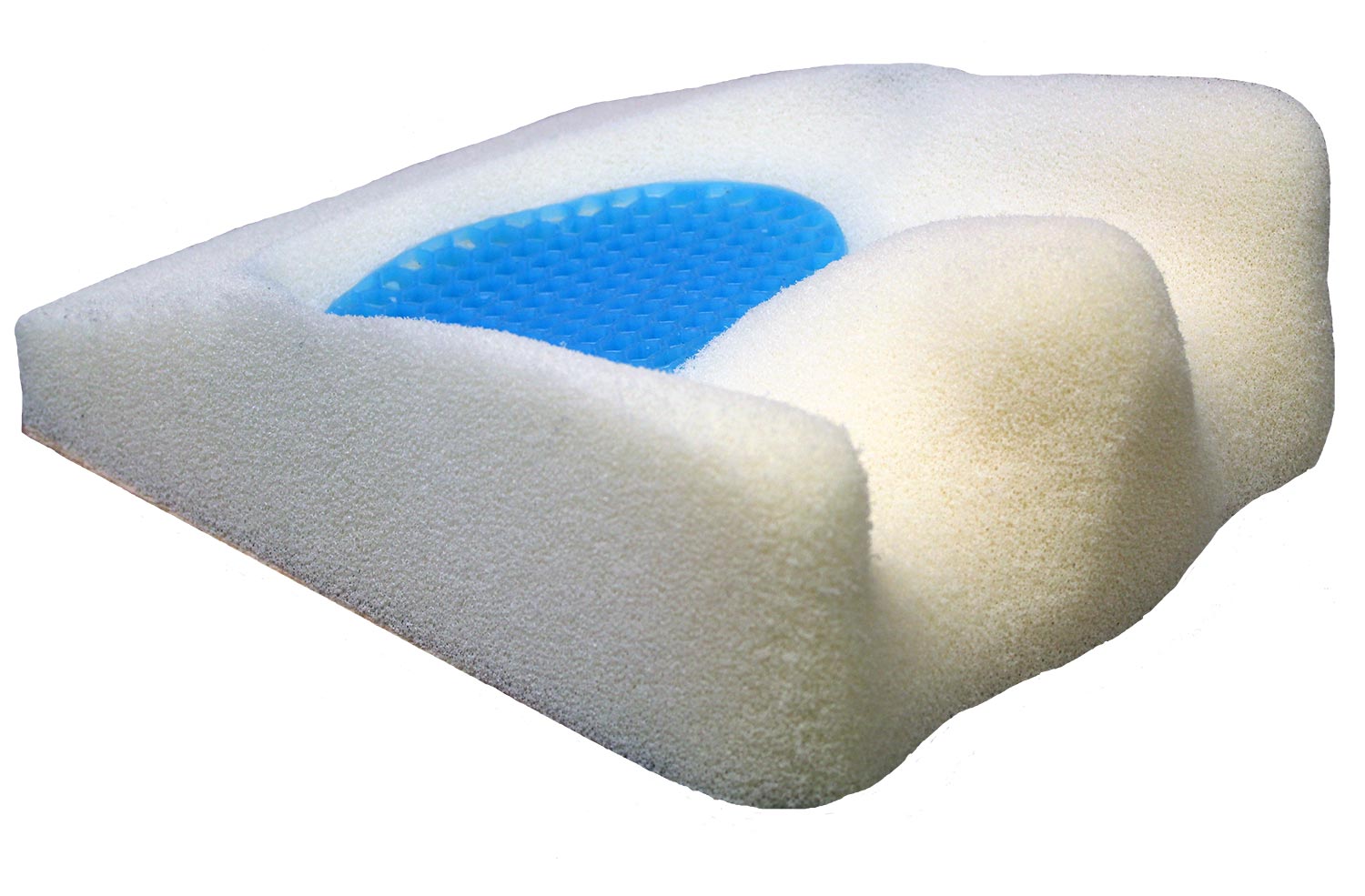

ZSS-Hyper-Dri

Hyper-Dri

  • Porous foam that allows liquid and air to pass through easily.
  • Extremely light weight material.
  • Washable and made with antimicrobial additive.

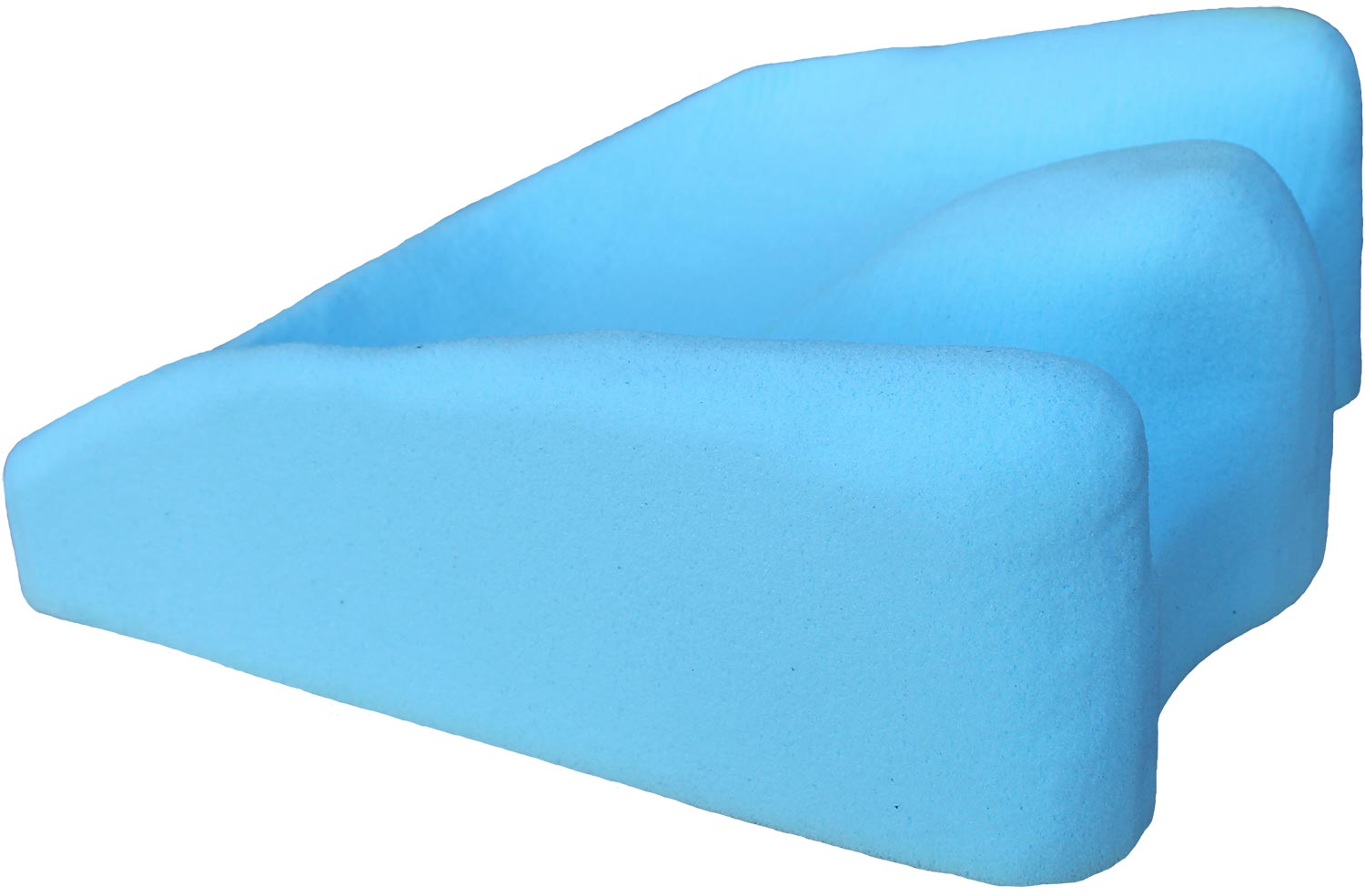

ZSS Memory Foam

Memory Foam

  • High impact energy absorption.
  • Soft pressure properties.
  • Waterproof coatings and covers can be provided.

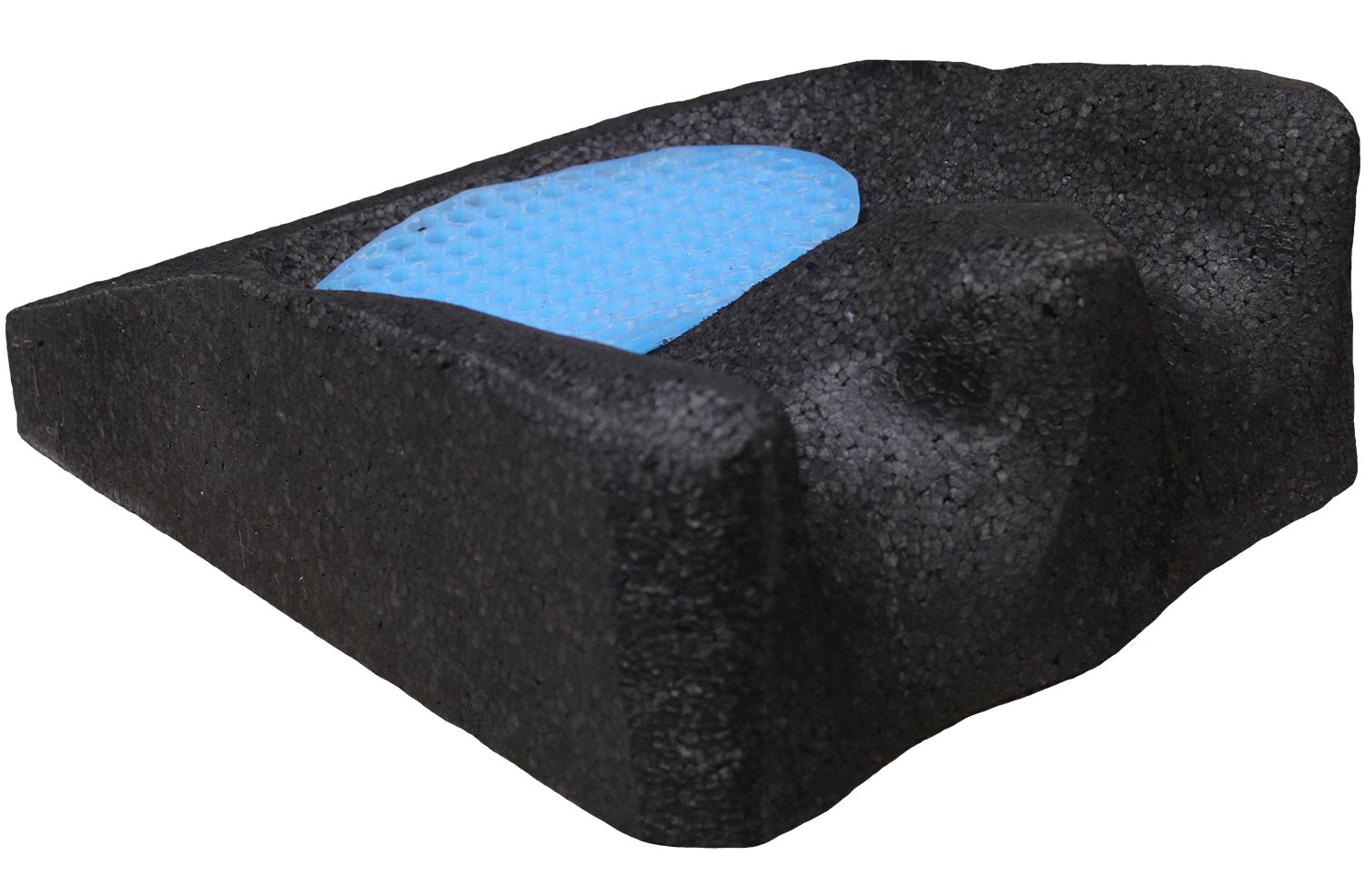

ZSS Ortho Foam

Ortho Foam

  • Standard Palyfoam
  • Extremely light weight material.
  • Easily adjustable.
  • Waterproof options available.

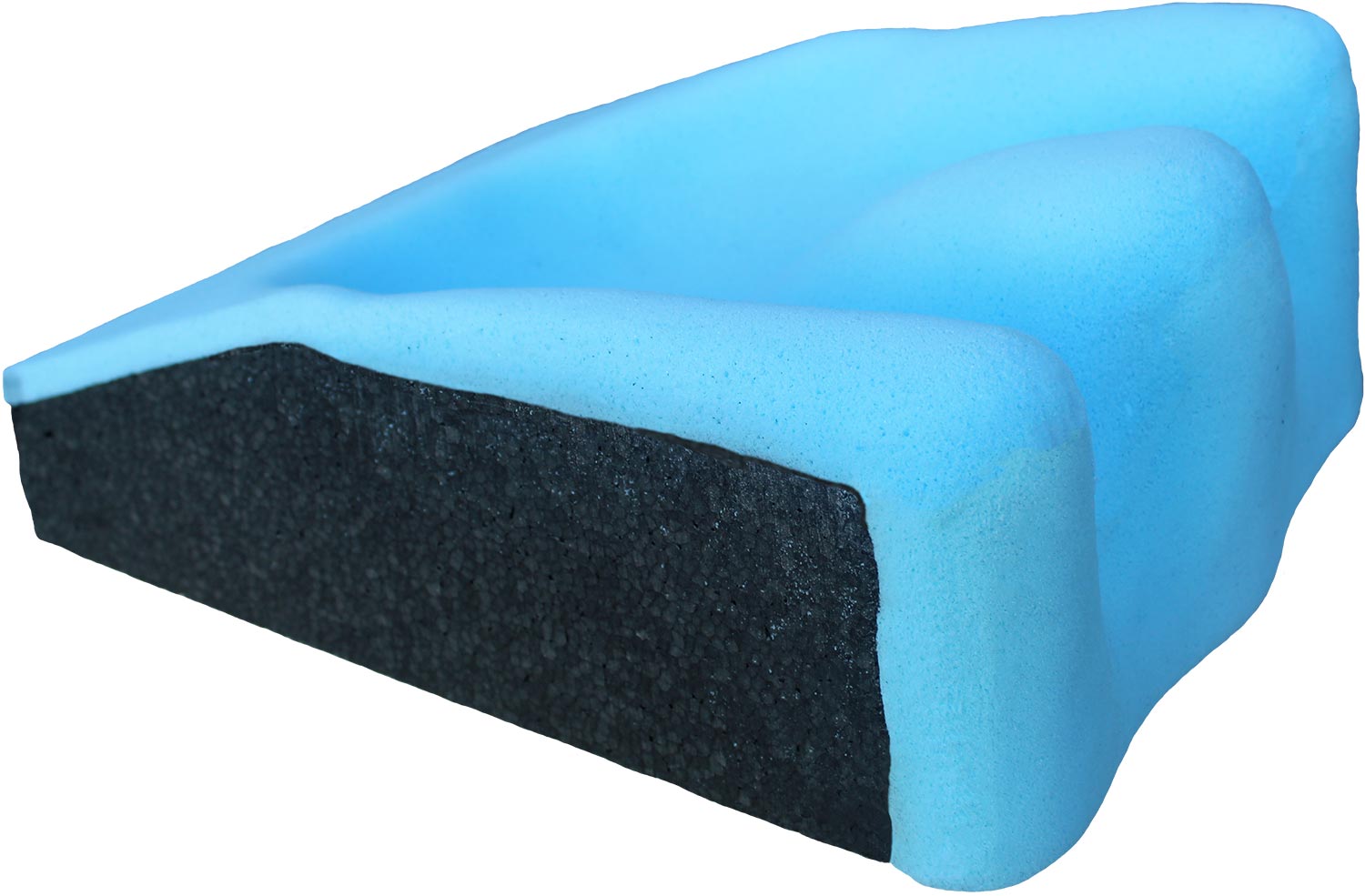

ZSS Multi-Layered

Multi-Layered

  • Dual Density Option
  • Firm Base to Maintain Support
  • Light Weight Design
  • Soft Top Layer for Comfort and Pressure Relief

Pressure Off Loading Options

Air Cell Bladder

Air Cell Bladder

Z-Gel ischial Well

Z-Gel ischial Well

Z-Gel Overlay

Z-Gel Overlay

Gel is offered in various densities, sizes, and custom dimensions.

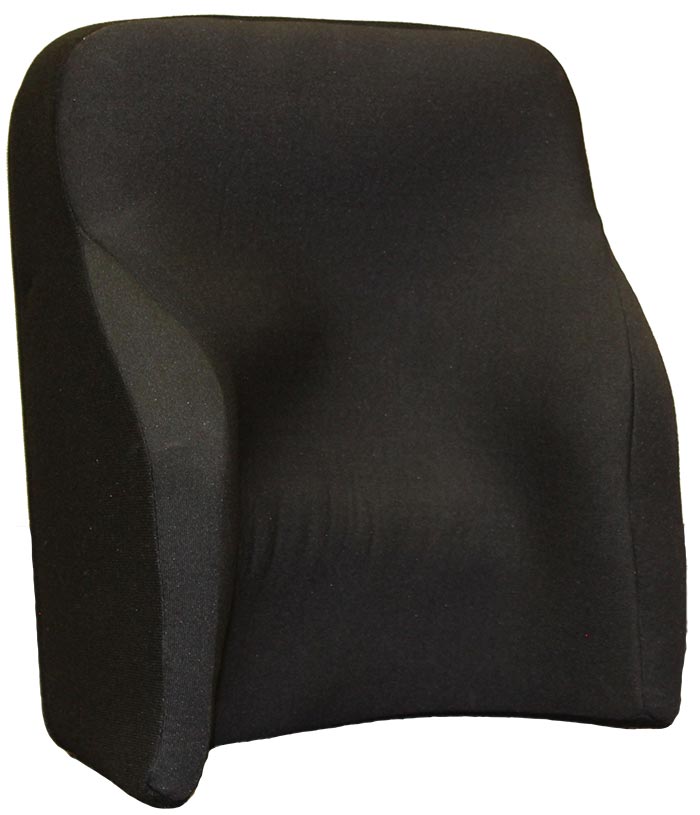

ZSS Custom Backs: E2617

Material Options

Direct Carved Foam Back with Multiple Material Options to choose from:

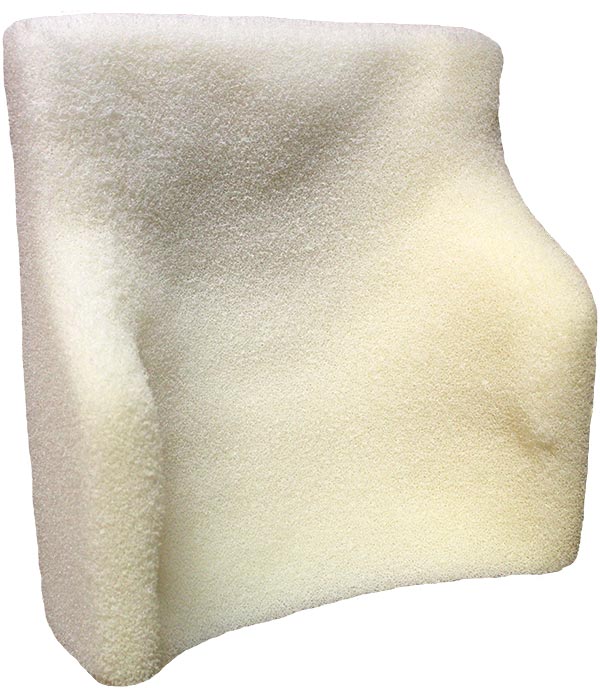

B-Hyper-Dri

Hyper-Dri

  • Porous foam that allows liquid and air to pass through easily.
  • Extremely light weight material.
  • Washable and made with antimicrobial additive.

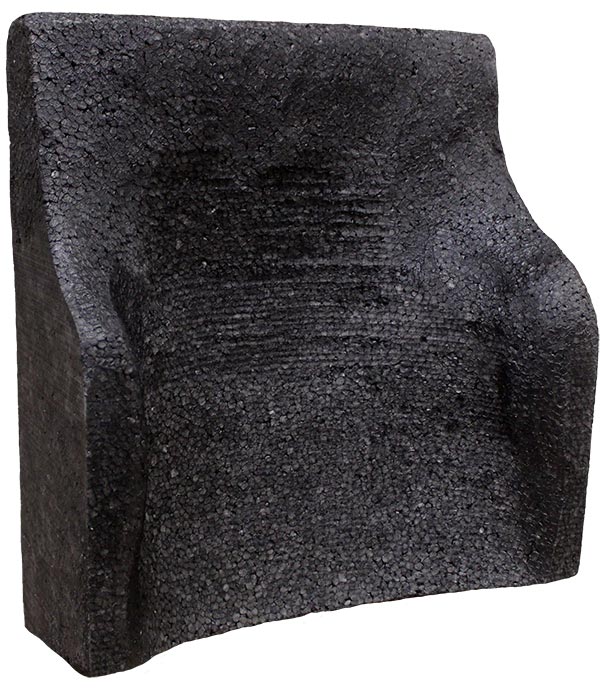

B Ortho Foam

Ortho Foam

  • Standard Palyfoam
  • Extremely light weight material.
  • Easily adjustable.
  • Waterproof options available.

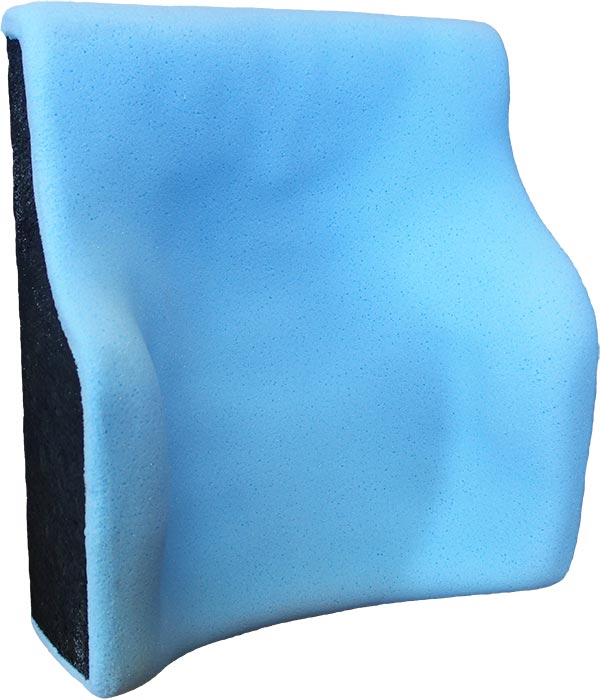

B Multilayered

Multilayered

  • Dual Density Option
  • Firm Base to Maintain Support
  • Light Weight Design
  • Soft Top Layer for Comfort and Pressure Relief

Mounting Options

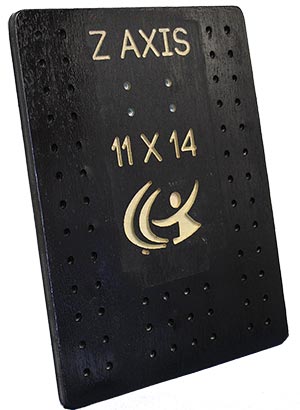

Flush Mount Back Options

Flush Mount Back Options
  • 1/2" Plywood a Pm
  • ABS Plastic 8 ”
  • Velcro Tabs

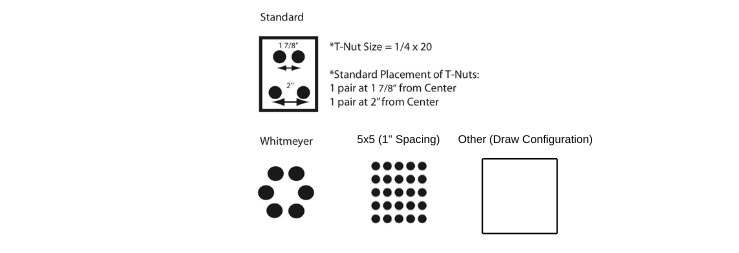

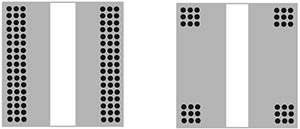

T-Nut Packages

  • T-Nut Size = 1/4 x 20
  • Placement of T-Nuts:
    1* Default form
    top, bottorn, and sides
T-Nut Packages

Mounting Kits

Flush Mount Kit 7/8"

  • 1" Drap Hooks w/ Stops 7/8"
  • 2" Drap Hooks w/ Staps 7/8"
  • 3" Drop Hooks w/ Stops 7/8"

Flush Mount Kit 1"

  • 1" Drap Hooks w/ Staps 1"
  • 2" Drap Hook w/ Stops 1"
  • 3" Drop Hooks w/ Stops 1"

Shear Plate Mount for Power Wheelchair available

Headrest Mounting Options

Headrest Options

Fabric Cover Options

Mesh Ventilated Fabric/Waffle

Lycra

Ventilated Neoprene

Dartex

Neoprene



Options

Order Form

Documents

Billing Codes

  • Material Options
  • Back Mount Options
  • Combined Package
  • Seat Mount Options
  • Cover Options
  • Interface Options
  • Adductor/Abductor Options
  • Swing Away/Lateral Options
  • Headrest Options
  • Harness & Belts
  • Custom Arm Trough
  • Custom Tray
  • Footbox
  • Shoe Holders
  • All Options are located on order form
  • E2617 (Back)
  • E2609 (Cushion)
